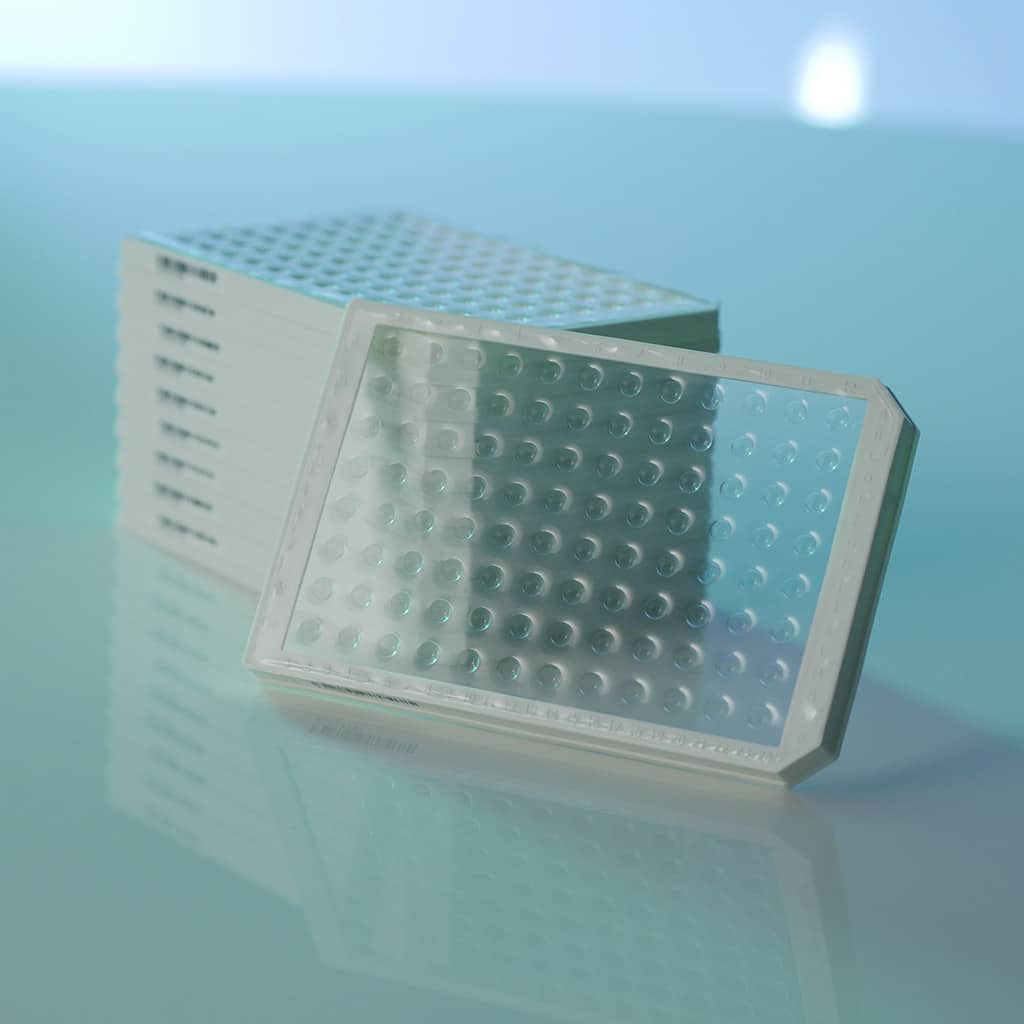

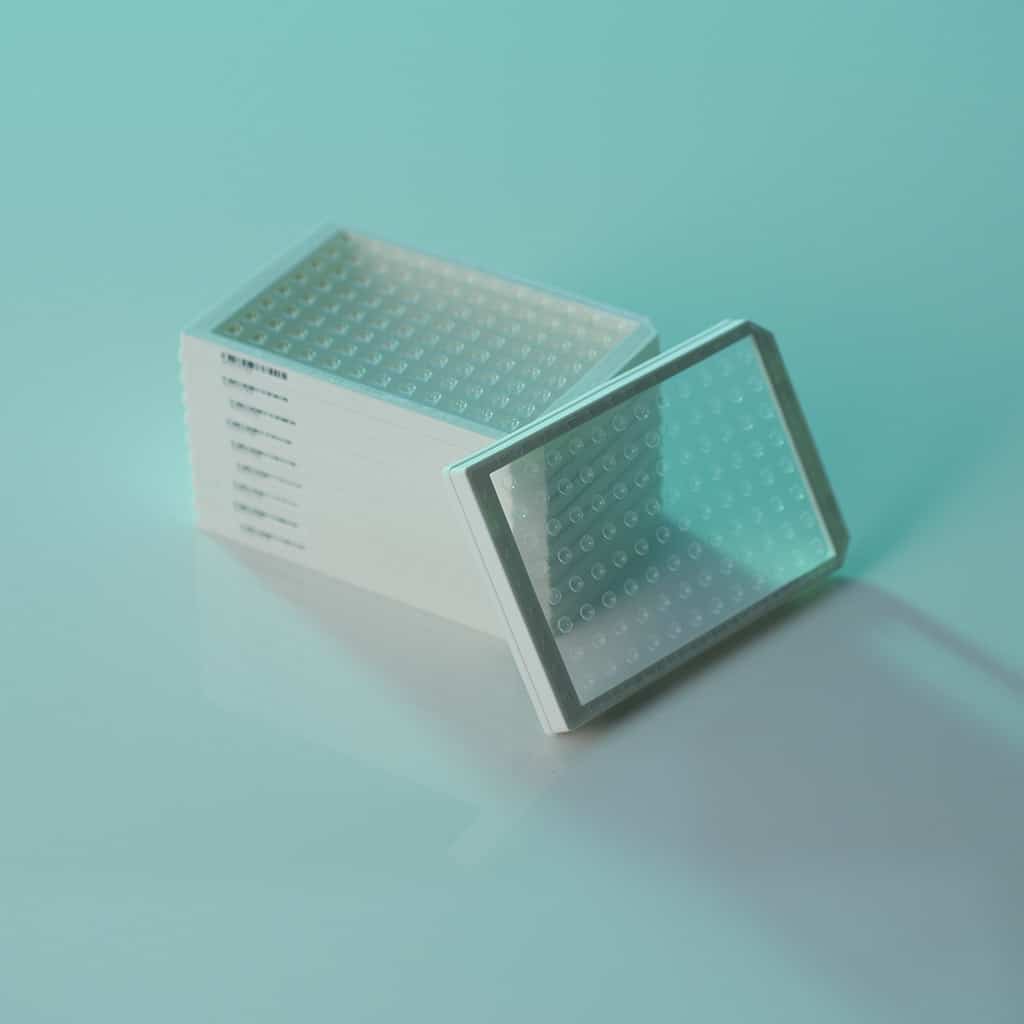

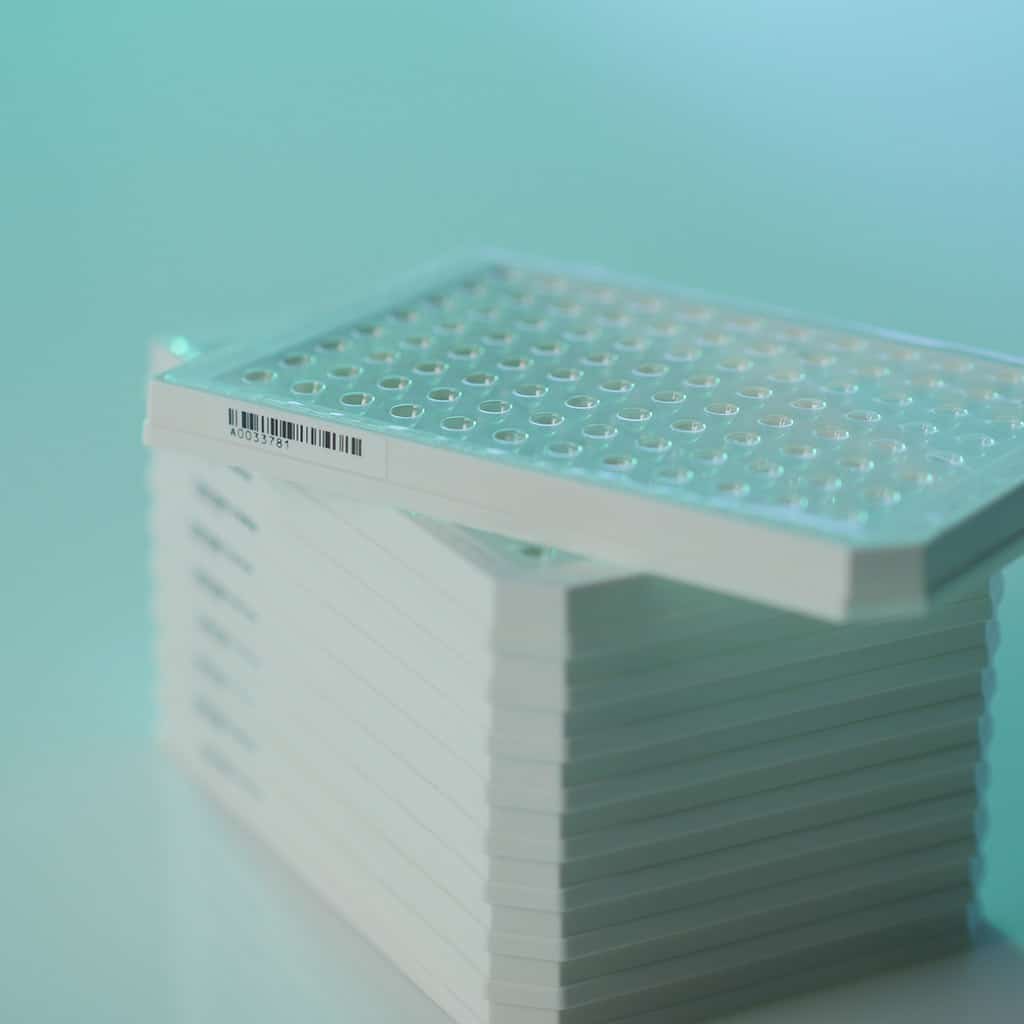

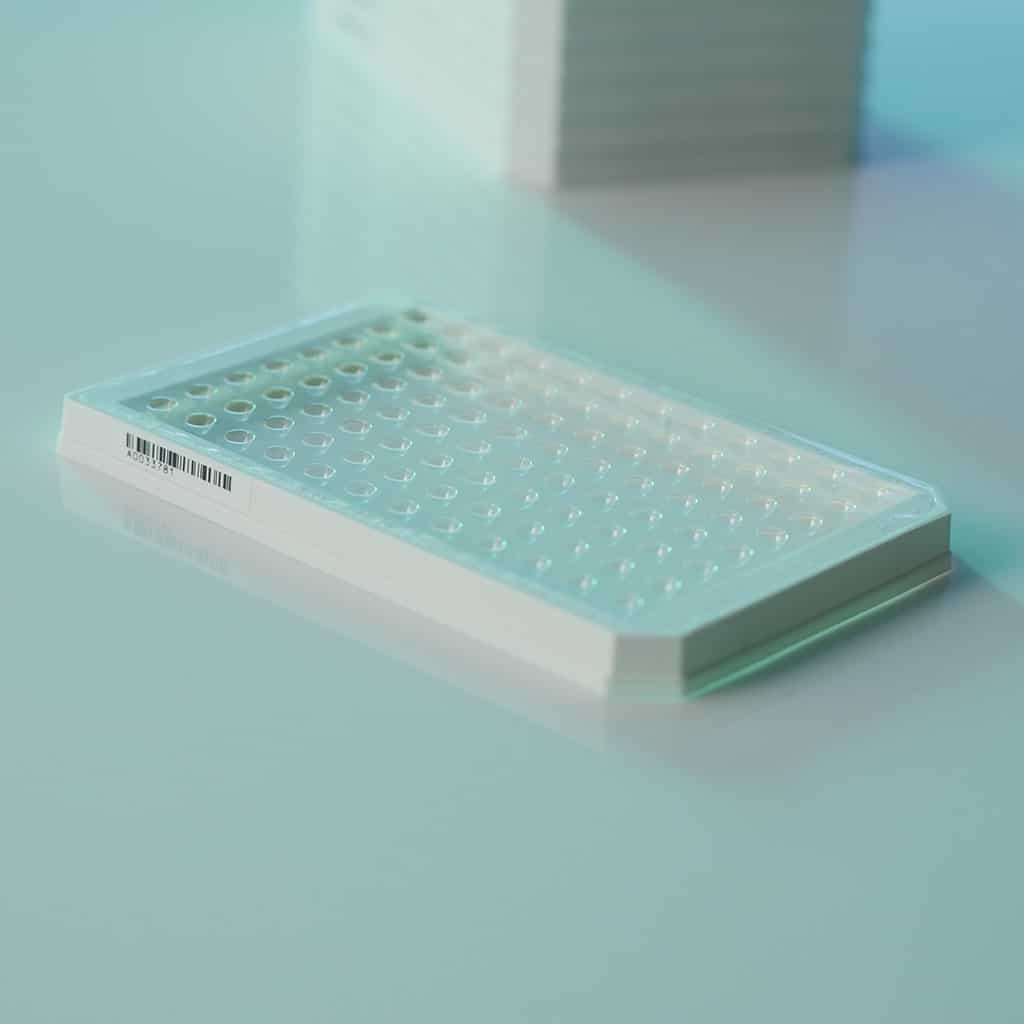

NextGenPCR® Barcoded Microplates with either an optically-clear seal or a foil-backed seal will seal consistent of NextGenPCR® Microplates.
- Easy to use
- Standard SBS format
- Variety of well sizes

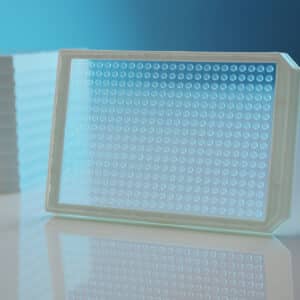

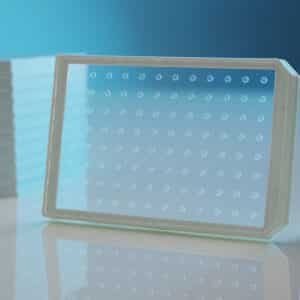

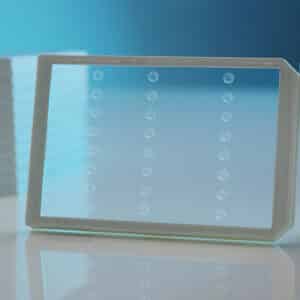

Barcoded Microplates come in a variety of well sizes (5ul, 12.5ul, 20ul and 50ul) and well number (24, 48, 96, or 384). The MBS Barcode Microplate frames have all properties, needed for integration in existing laboratory set-ups and are fully compatible with the laboratory standards and comply with the SBS plate format. Both plates have the same frame, with a polypropylene foil with 96 or 384 wells. The microplates have wells with a wall thickness of less than 50 microns. The temperatures inside each reaction change almost instantly due to the heat transfer across these thin-walled microplates.
The wells are sealed simultaneously, but separately, using a heat sealer and a patented anvil. Wells can be sealed with polypropylene foil with an aluminum or polyester backing. Both foils can be pierced with MBS pipette tips.
|Catalog Number||32812, 32813|
|Size||Standard SBS format|
|24-well plates||20µl or 50µl|
|48-well plates||20µl or 50µl|
|96-well plates||5 – 20 or 2-5 µl|
|384-well plates||2-5 µl|
|Compatible plate materials||Polypropylene, Polystyrene, Polyethylene|
|Compatible plate types||NextGenPCR® microplates|
|Compatible seal types||Optical Clear or Foil-backed heat seals|
